Cat7 Performance

Supports 10 Gbps speed and 600 MHz bandwidth.

Hassle-free Installation

-Features a locking cover for easy cable fix;

-Equipped with a cable holder and a top cover for quick cable termination;

-No crimping tools are required for wire termination.

Stable Data Transmission

-Zinc alloy metal shielding effectively prevents EMI, RFI, and crosstalk interference;

-Features a dust cover to protect the RJ45 connector;

-Gold-plated contacts offer conductivity and corrosion resistance to ensure stable data transfer.

Wide Compatibility

-Can crimp solid and stranded wires from 22 to 26 AWG;

-Backward compatible with Cat5e/Cat6/Cat6a Ethernet cables;

-Supports PoE, PoE+, and PoE++ applications.

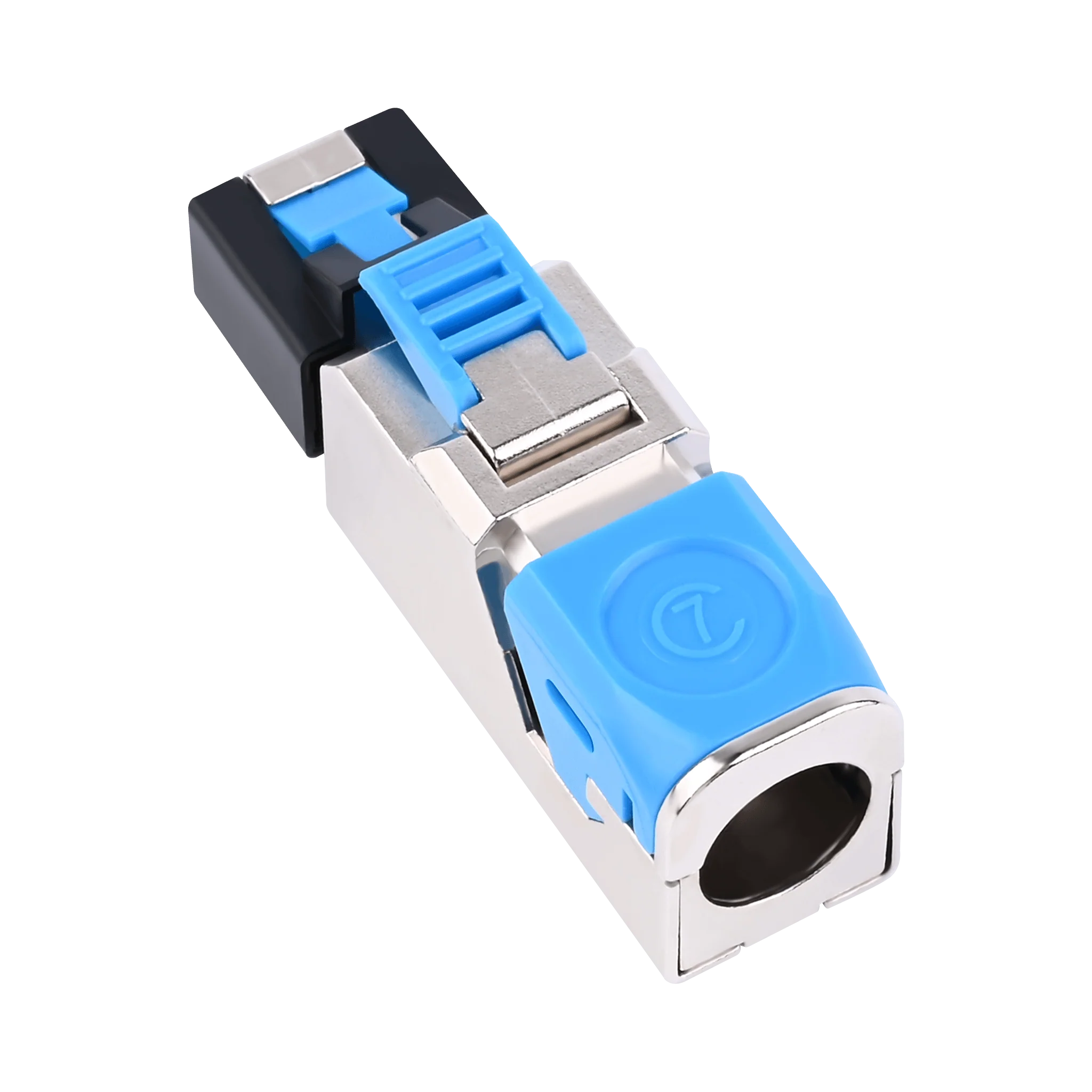

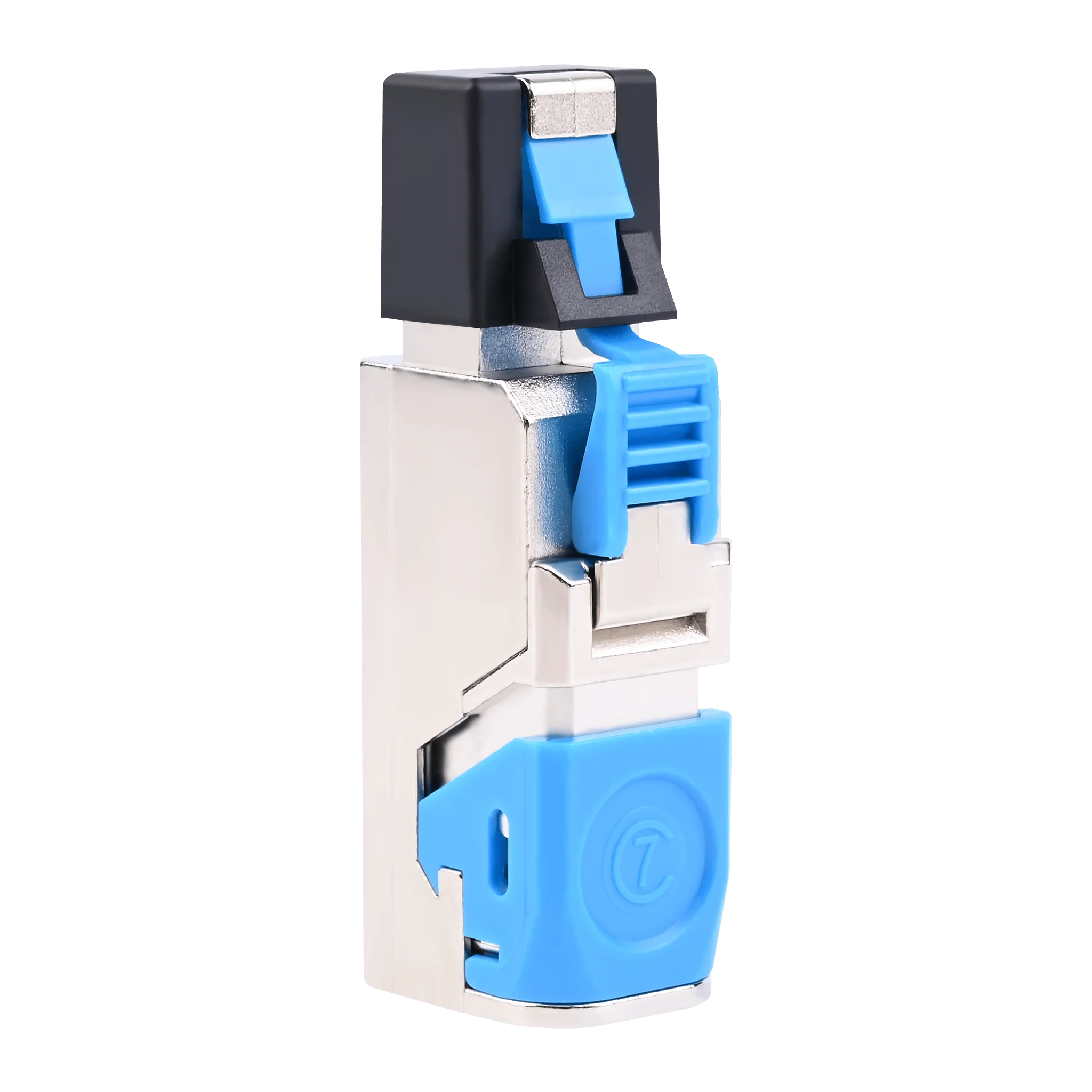

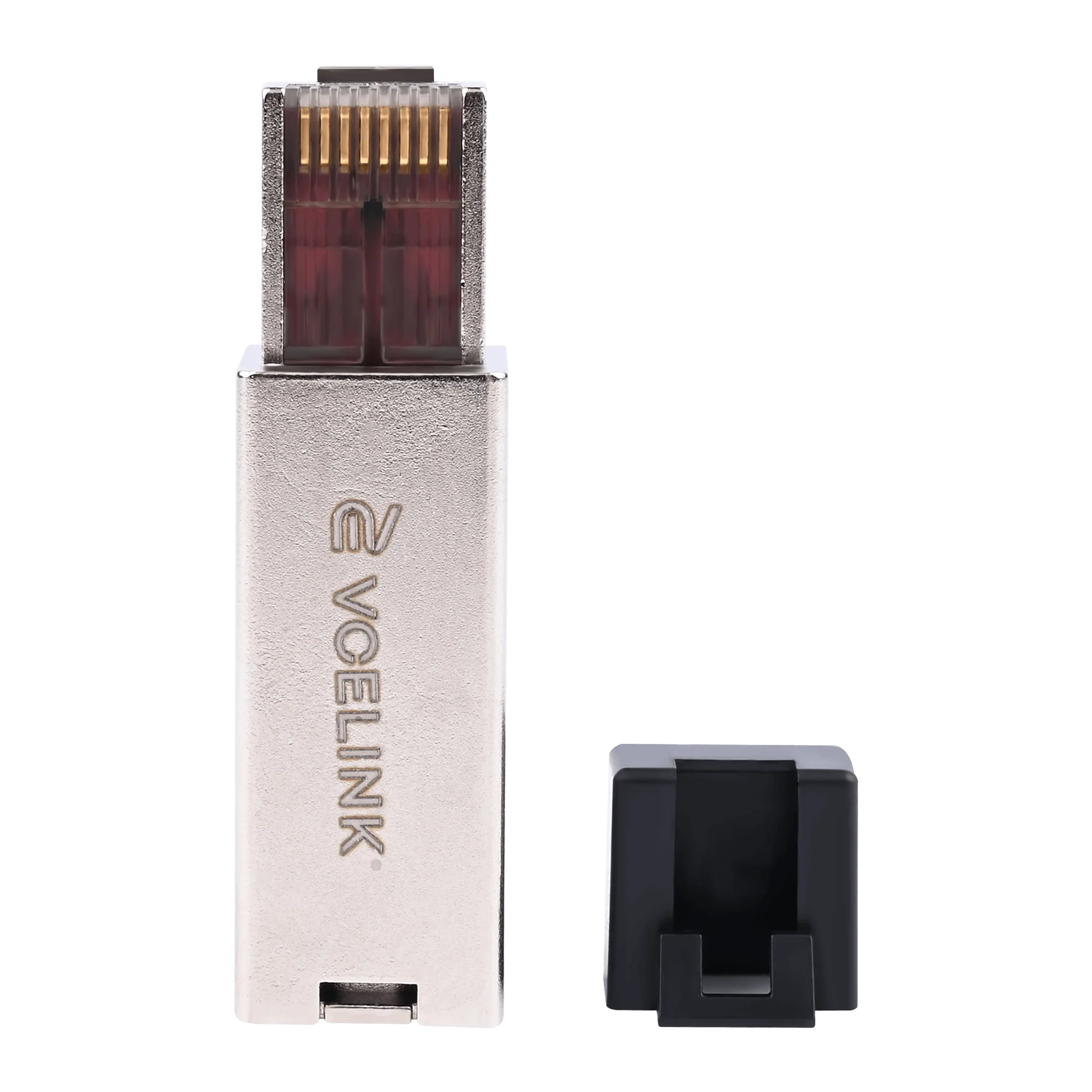

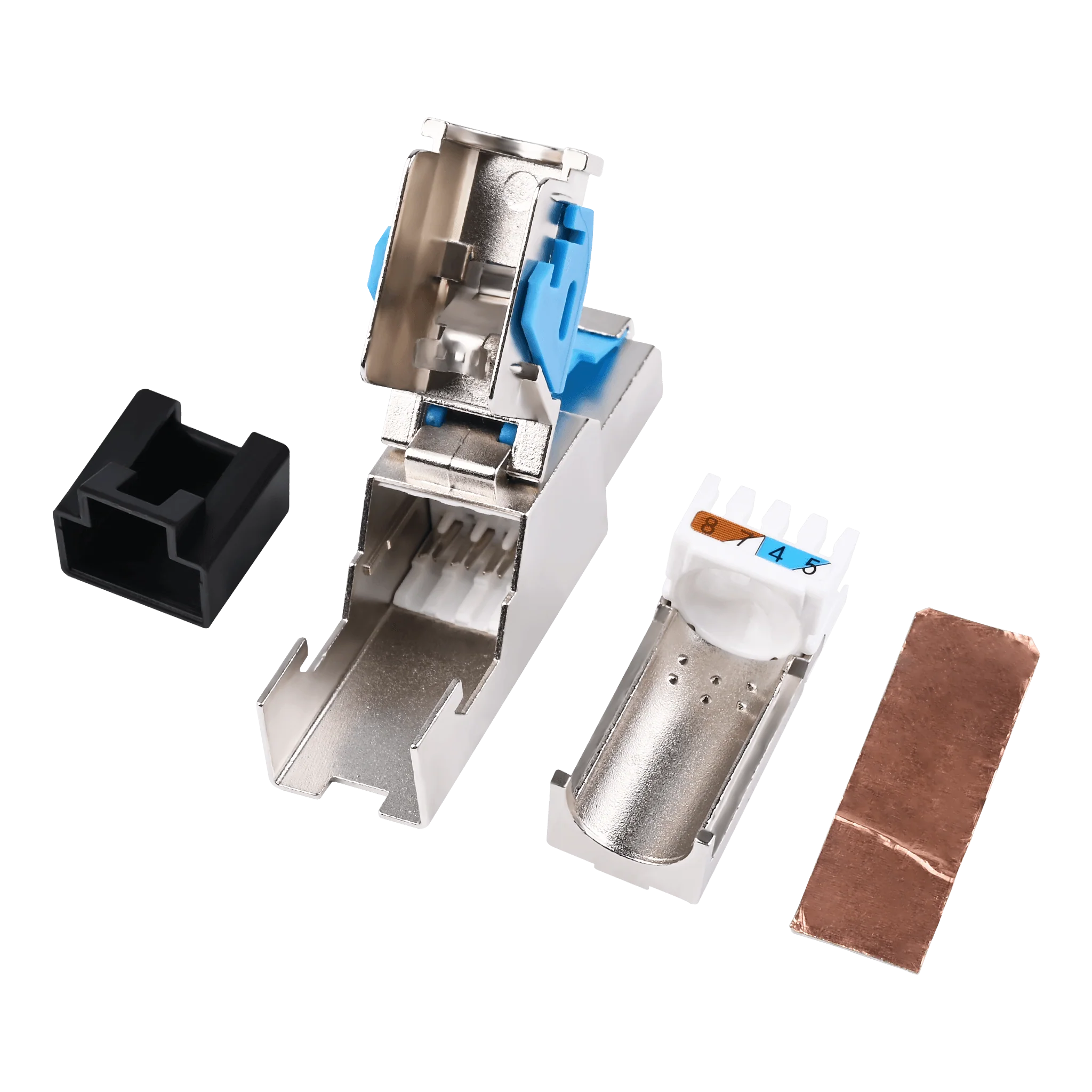

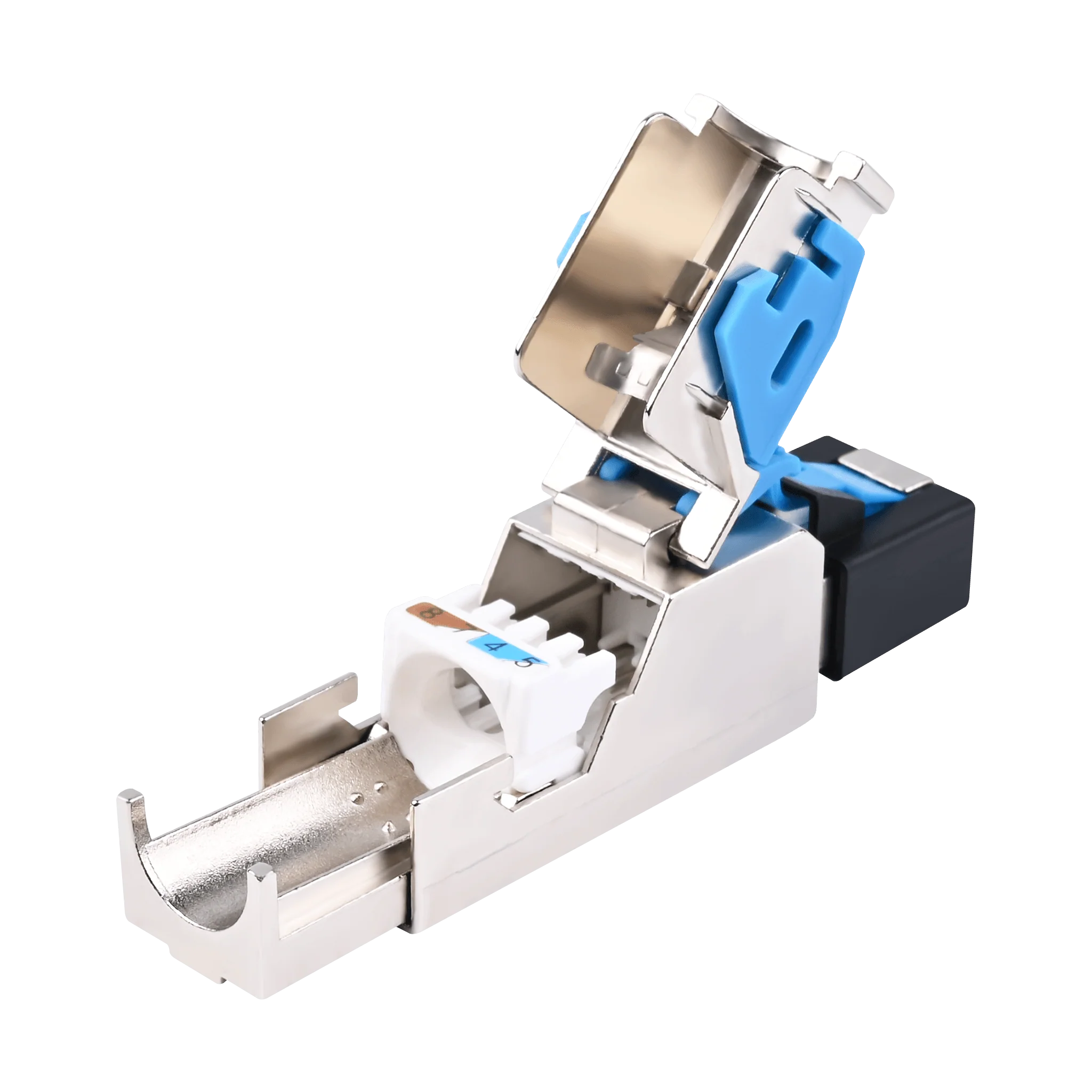

VCELINK tool free shielded Cat7 connector with locking cover is designed for a 10 Gbps and 600 MHz bandwidth network solution. It meets ANSI/TIA568-C.2 and ISO/IEC11801 standards. This Cat7 field termination plug features a unique locking design for easy and secure locking with the bottom cover. The plug features a zinc alloy shielding design, ensuring stable data transmission with less EMI, RFI, or crosstalk noise. The cable conductor holder smoothly slides into the RJ45 connector body for quick and hassle-free termination. The Cat7 field plug has an integrated strain relief design that helps protect your network cables from stress and potential damage.
